IPunch

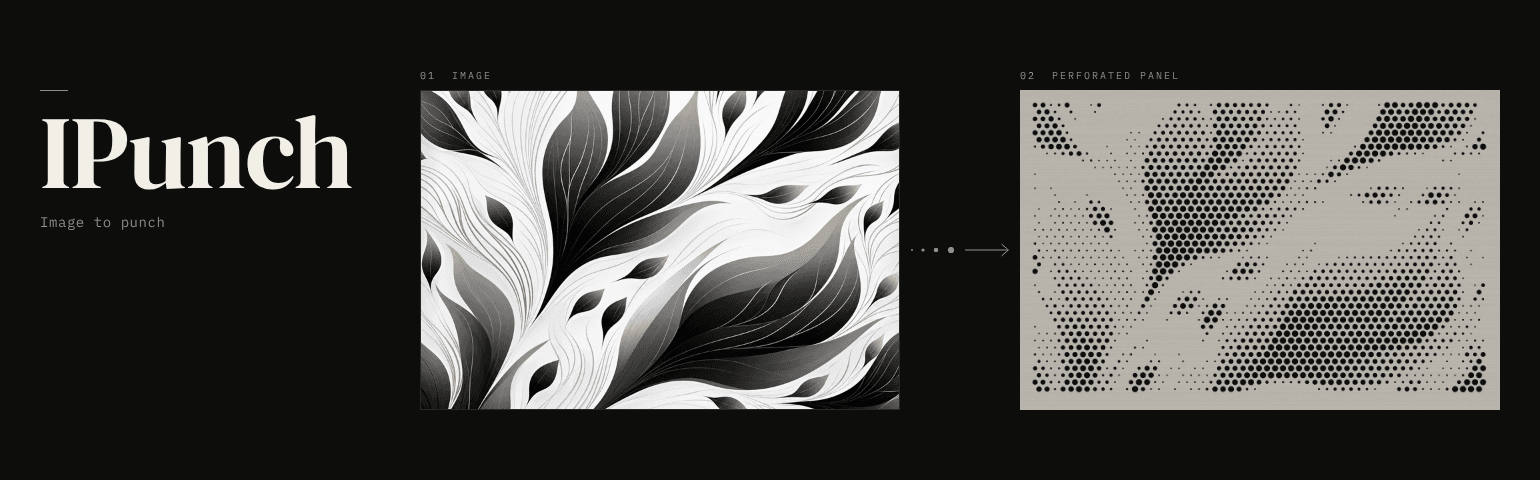

IPunch converts any image into a fabrication-ready perforation pattern. Upload a photo, drawing, or graphic — the tool maps pixel brightness to hole density across a panel grid. Adjust hole radius, spacing, pattern type (grid or hex), and open-area ratio live. Export as DXF for AutoCAD and CNC directly from the browser. No installation, no account.

IPunchLive

What it does

  • Maps pixel brightness to hole density across a panel grid
  • Live control of hole radius, spacing, pattern type, and open-area ratio
  • DXF export for AutoCAD and CNC straight from the browser
